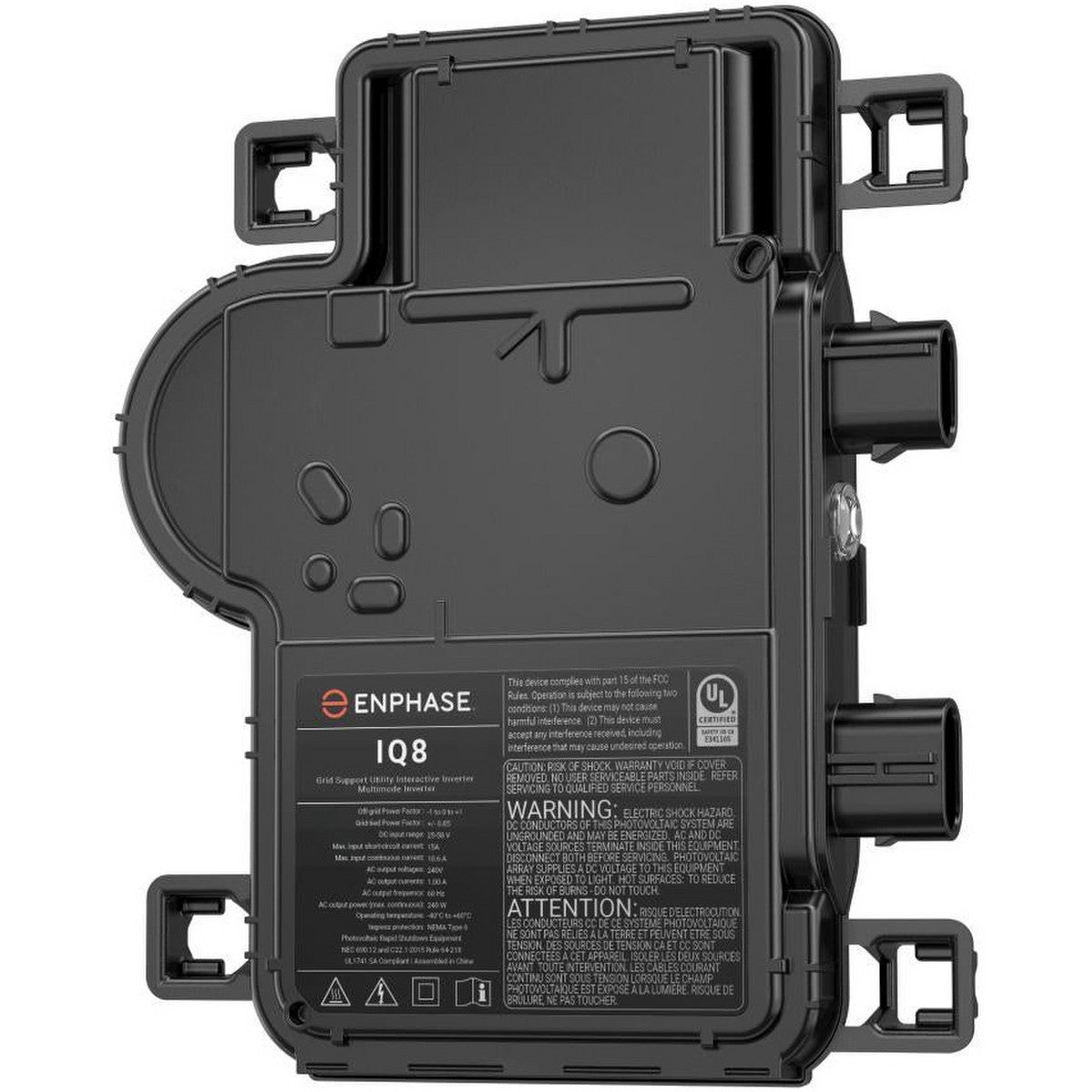

ENPHASE IQ8-60-2-US 235W-350W+ MICROINVERTER

Enphase IQ8 microinverter, compatible with 60-cell PV modules, 240V, 245VA peak power, Enphase Q Bulkhead Connector, IQ8-60-2-US

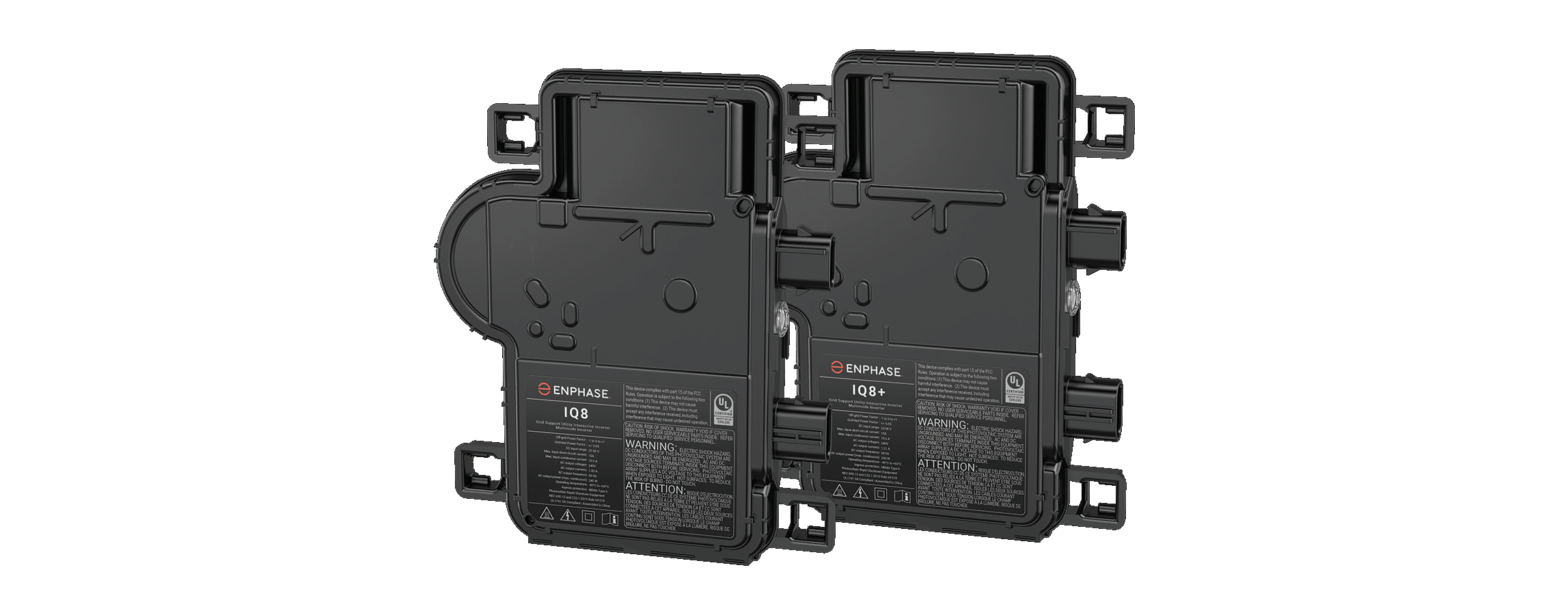

This newest line of IQ microinverters are the industry's first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-based microinverter is Enphase's proprietary application specific integrated circuit (ASIC); which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55nm technology with high speed digital logic and has super fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.

Part of the Enphase Energy System, the IQ8 series microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software.

Features

• Easy to Install - Lightweight and compact with plug-n-play connectors. Power Line Communication (PLC) between components. Faster installation with simple two-wire cabling.


• Productive and Reliable - Produce power even when the grid is down. More than one million cumulative hours of testing. Class II double-insulated enclosure. Optimized for high-powered PV modules.


• Grid Forming - Complies with the latest advanced grid support. Remote automatic updates for the latest grid requirements. Configurable to support a wide range of grid profiles. Meets CA Rule 21 (UL 1741-SA) requirements.

• Input Data
  Commonly Used Module Pairings:	235W to 350W+
  Module Compatibility:	60-Cell/120 Half Cell PV Modules
  Peak Power Tracking Voltage:	27V-37 Volts
  Operating Range:	25V-48 Volts
  Min / Max Start Voltage:	30V / 48 Volts
  Max. Input DC Voltage:	50 Volts
  Max DC Short Circuit Current (Module Isc):	15 Amps
  Overvoltage Class DC Port:	II
  DC Port Backfeed Under Single Fault:	0 Amps
  PV Array Configuration:	1x1 Ungrounded Array; No additional DC side production required; AC side protection requires max 20A per branch circuit
