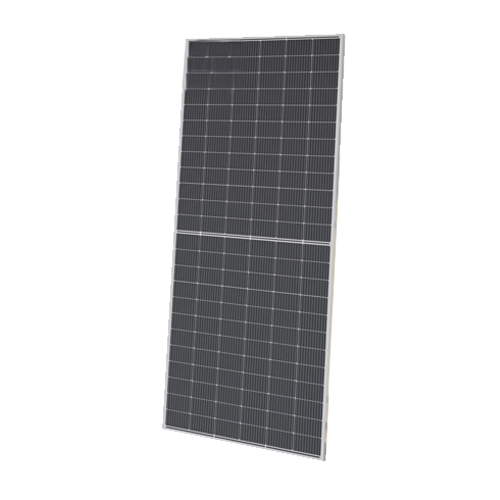

ACOPOWER (Runergy) 545W Solar Panel 144 Cells Bifacial HY-DH144P8-545

Among the newest offerings of Hyperion (Runergy), DH144P8-545 is part of the HY series. These panels use state-of-the-art technology to achieve high efficiency and dependability. The Passivated Emitter Rear Contact (PERC) technology ensures excellent power output. This solar cell type employs an additional reflective layer to absorb more sunlight.

To further boost the performance, Hyperion (Runergy) employs half-cut cell technology. Each of the panel’s 144 cells is only half the size of a traditional solar cell. This grants DH144P8-545 lower resistive losses and better shade tolerance. Given its size and weight, DH144P8-545 efficiency of 21.1% is quite impressive. And while conventional panels use only one side to absorb photons, bifacial modules employ both sides at the same time. Thanks to the technology, this model can be up to 30% more efficient. Novel design solutions allow this panel to look as well as it performs. This model is just 1.38" in depth and is jet black with a sleek finish. The panel's functionality and durability are not affected by its aesthetic appeal though. Hyperion (Runergy) provides 12 years of product warranty and guarantees that after 30 years, performance will be at 84.95% or more.

• 545 W power output
• 144 half-cut PERC cells
• 21.1% efficiency
• 1500 V DC maximum system voltage
• RY01 connectors
• 12-year product and 30-year performance warranties

More energy and efficiency

The PERC technology further improves an already excellent efficiency of 21.1 percent. A reliable PID resistance and a unique glass lamination were added by the maker, which ultimately produced a model that was effective and extremely durable. DH144P8-545 produces 545 W of power under typical test settings.

Heat-resistant performance

The heat is less of a problem with this module: with one of the industry's lowest temperature coefficients, DH144P8-545 loses just -0.35% of efficiency for every 1.8°F over 77°F.

Quality and reliability

DH144P8-545 receives multiple quality checks throughout the manufacturing process and is subject to stringent quality and reliability testing. The manufacturing facilities are highly automated, eliminating the risk of human error. Hyperion (Runergy) is dedicated to quality, safety and reliability to ensure you get the very best.

Low degradation for increased lifespan

The amount of power output loss experienced by these panels during the first year of operation will not exceed 2%. The average yearly power drop from the second to the 30th year will not surpass 0.45%. After 30 years, the module will still produce more than 84.95% of its initial output.

Certified for the most extreme environmental conditions

PID, salt, acid and ammonia cannot harm DH144P8-545. Furthermore, it has a mechanical load resistance of up to 5400 Pa in the front and 2400 Pa in the back. A layer of protective glass and 1.38" thick aluminum alloy frame are the primary reasons for its toughness.

Outstanding all-black design

The panel has a sleek, all-black style that complements any roof beautifully. Hyperion (Runergy) uses unique treatment and selection procedures to guarantee optimum cell color. The cells are connected by thinner wires, and from a distance, the surface of the modules seems seamless and smooth.

Size

89.69" x 44.65" x 1.38"

Weight

72.1 lb
