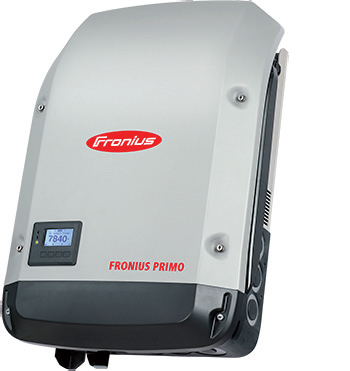

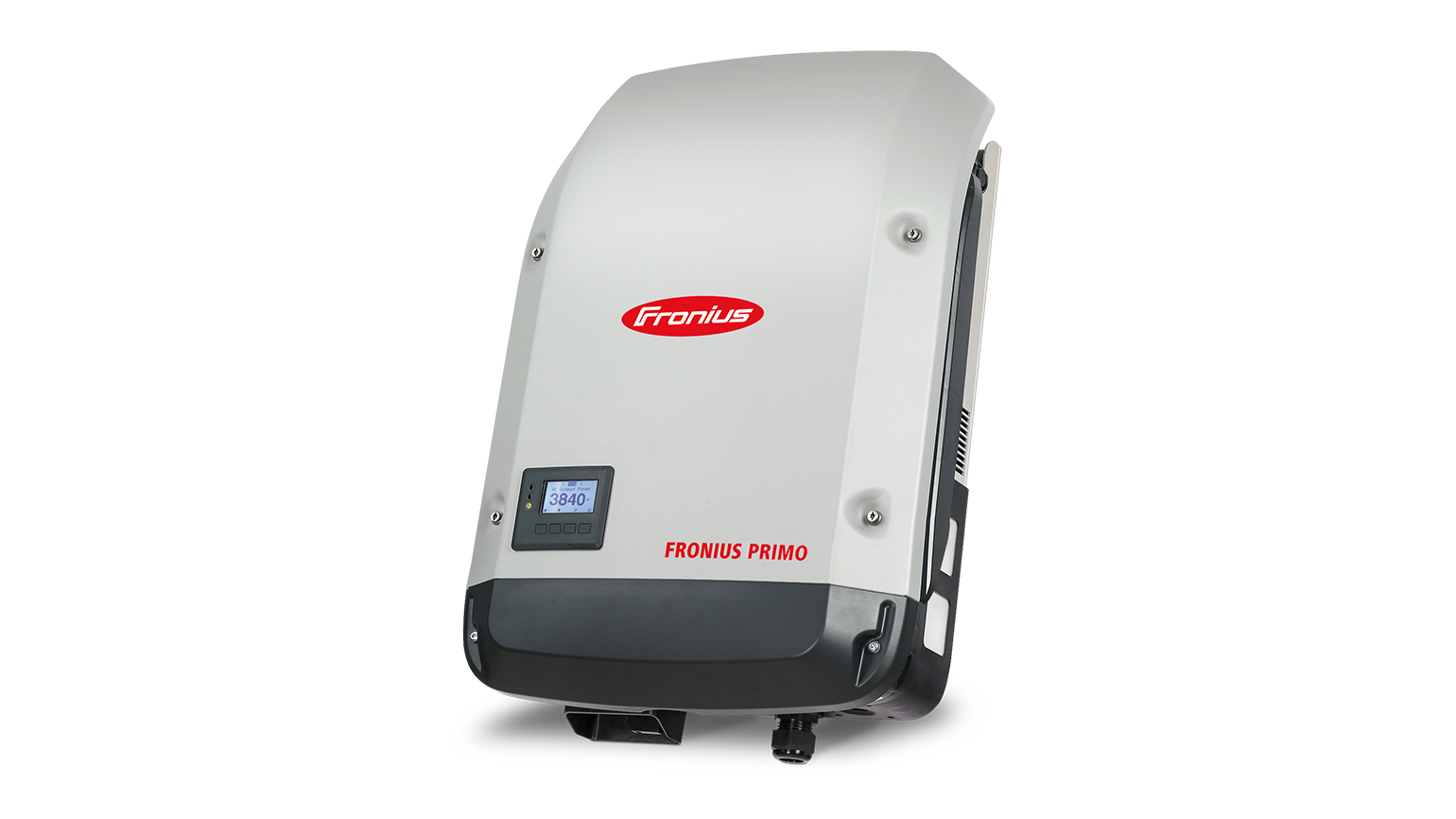

FRONIUS PRIMO LITE 3.8-1 3.8KW INVERTER

Fronius Primo LITE 3.8-1 208-240, 3.8kW single phase, string inverter w/o Data Manager card

With power categories ranging from 3.8 kW to 15.0 kW, the transformerless Fronius Primo Lite is the ideal compact single-phase inverter for residential applications. The sleek design is equipped with the SnapINverter hinge mounting system, which allows for lightweight, secure, and convenient installation. The Fronius Primo Lite has several integrated features that set it apart from competitors including dual power point trackers, high system voltage, and a wide input voltage range.

Features

• Compatibility - PC board replacement process. Smart grid ready.


• Safety - Arc Fault Circuit Interruption. SuperFlex Design.


• User Friendly - Wi-FI Interface. SnapINverter mounting system

• Technology:	1-Ph Grid-Tie
  Dimensions:	16.9 x 24.7 x 8.1 inches
  Weight:	47.29 lbs
  Protection Class:	NEMA 4X
  Overvoltage Category (DC/AC):	< 1W
  Night-Time Consumption:	Transformerless
  Cooling:	Variable Speed Fan
  Installation:	Indoor & Outdoor Installation
  Ambient Temperatue Range:	-25 - +55 °C
  DC Connection Technology:	4x DC+ and 4x DC- screw terminals for copper (solid / stranded / fine stranded) or aluminum (solid / stranded)
  AC Connection Technology:	Screw Terminals 12 - 6 AWG



  Electrical Data
  Recommended PV Power:	3.0 - 6.0kW
  Maximum Useable Input Current:	18 / 18 Amps
  Minimum DC Current:	36 Amps
  Maximum Array Short Circuit Current:	27 / 27 Amps
  Operating Voltage Range:	80 V - 600 Volts
  Maximum Input Voltage:	600 Volts
  Nominal Input Voltage:	410 Volts
  MPP Voltage Range:	200 V - 480 Volts
  Max. Input Voltage:	600 V (1,000 V optional²)
  Number of MPPT:	2
